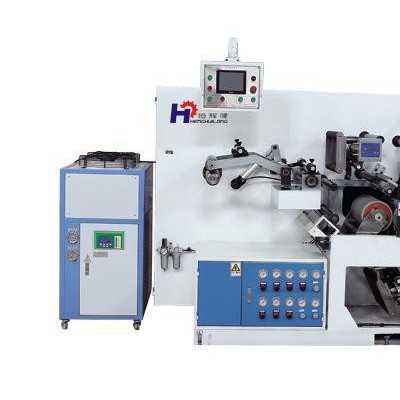

HHL-HM460S 全伺服運動控制熱熔膠居中復合機

HHL-HM460S 全伺服運動控制熱熔膠復合機—(**號：ZL201120133041X)

一 生產工藝

 無紡布上膠----膜放卷-貼合--分切---收卷

二 產品應用

用于紙尿褲底膜，醫用防護服**，寵物用品，成人失禁產品，其他透氣復合產品

三 技術特性:
  A  放、收料部分
1、 采用低膠量高速、高精度網輥轉移涂布形式，涂布控制精度和使用壽命大大提高；
2、 伺服馬達傳動系統控制收放卷提供**張力控制；
3、放卷均配有糾偏裝置，高性能的光電傳感器與伺服執行機構保證了卷材的整齊；
4、 張力閉環自動控制,復合前張力與速度控制穩定，產品品質保證；
5、張力自動反饋,卷徑自動計算；
  B  人機控制接口
1、 觸碰式控制平臺。
2、 預設定加減速。
3、 對設定速度自動加減速。
4、 收料自動張力控制。
5、 長度和卷徑大小自動停機設置。
6、 整機操作簡單，自動化程度高、狀態顯示、誤操作提示等。
C   膠機
1、 觸碰式控制平臺。
2、 帶有膠量自動跟蹤、顯示、存儲功能，使操作及使用方便，快捷
3、 加熱器溫度全部由高精度PID控制，溫度控制精度高，穩定性好
4、 膠量與主機速度同步跟蹤、也可獨立調整.該機具備可生產全幅復合膜，在線分切功能。

四  主要技術參數

HHL-HM460S FullServoMotionControlHotMeltAdhesiveLaminatingMachine

The HHL-HM460S servo motion control hot melt adhesive laminating machine - (Patent No.: ZL201120133041X)

一processing method

(anilox roller ) cobwebbing roll seize and glue the hot melt adhesive on the nonwoven -unwinding the film-compounding-slitting-winding

二 application

Cloth-like back sheet of the baby diaper ,incontinent pad,medical pad

三 main features

A Winding and unwinding system

1.cobwebbing roll seizing and gluing the hot melt adhesive to procure the lower glue consumption and higher coating precision

2.Servo motor drive system and control volume with precise tension control

3.The web-guider and sensors were conducive to the even end surface of the finished product

4.Tension closded-loop control system

5.the OD was calculated automatically in sync with the feedback of the winding tense

B Human-Machine Interface

1.Control by the touch screen

2.working speed could be preset

3.Auto tension control system

4.The length and diameter of the finished product could be preset

5.high automation ,easy to operate ,the working status of the was displayed digitally in real time ,warning of the malfunction

C HMT system

1.Control by the touch screen

2.the glue volume would be monitored automatically and displayed on the screen

3.PID was applied in controlling the temperature of the heater within the 1 Celsius

4.the glue volume could be adjusted independently or applied in sync with the main machine The working type of the machine could be full lamination and half lamination .in line slitting function was available on the customers request

四 Main parameters
