Pipe automatic punching machine parameters
1. The rated power/voltage: 7.5 kw / 380 v
2. The hydraulic oil pump: 31 rows of high-pressure vane pump (Taiwan)
3. The work the main oil cylinder: RO180 * 100-50-80-180 welding oil cylinder (heavy)
4. The machine size: 2000 * 320 * 920 (length * width * height)
5. Work efficiency: 4 s/hole
6. Maximum 100 * 100 square tube and 100 circular tube.
7. Wash pipe thickness: 10 mm
2. Functional features:
1, simple operating system, only need to adjust the oil cylinder stroke can be product processing, easy to operate.
2, the control system: mitsubishi PLC control + 8 inch touch screen.
3, processing range: 5-50 mm can be processed by changing the mould of the hole (according to customer needs customization).
4, this function on the complex shape of pipe fittings processing bore the whole or a half.
5, the machine can the longest 6 m tube type.
6, machine tool adjustment is convenient, rapid changing of the mold.
8, the punching adopts cylinder feeding, which greatly improved the stability of the equipment used for a long time.

管材自動沖孔機參數

1.額定功率/電壓：7.5kw/380v

2.液壓油泵：31排（臺灣高壓葉片泵）

3.工作主油缸：RO180*100-50-80（重型180焊接油缸）

4.機臺外尺寸：2000*320*920（長*寬*高度）

5.工作效率：4s/孔

6.**大可沖100*100方管，100圓管。

7.沖管厚度：10mm

二．功能特點：

1、簡單操作系統，僅需調節油缸行程即可進行產品加工，易操作。

2、 控制系統：三菱PLC控制組+8寸觸控屏。

3、加工范圍廣：通過更換模具可加工5-50mm的孔（可根據客戶需要定制）。

4、本機能在復雜形狀的管件上加工全孔或半孔。

5、本機**長可加工6米管型。

6、機床調整方便，換模迅速。

8、本沖孔采用油缸送料，大大提高了設備長時間使用的穩定性。

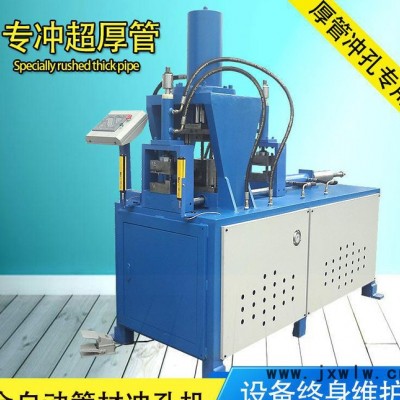

 產品實拍圖

Products will figure

自動沖孔機應用范圍

     自動管材沖孔機主要范圍應用為：槽鋼沖孔行業，角鋼自動沖孔，U型缸沖孔，厚圓管沖孔；其他常規設備主要應用于不銹鋼陽臺護欄、樓梯扶手鋅鋼護欄、鋁合金圍墻護欄、鐵藝護欄、門窗不銹鋼制品、鋁型材制品、管材制品、超市貨架打孔、鞋架打孔、等?？蓻_各種形狀孔徑，方孔、圓孔、菱形、異性孔、圓管沖弧口、斜弧口、角度不對等弧口等金屬加工設備。

                                    Automatic punching machine application range

Automatic pipe punching machine main scope of application: channel steel punching, Angle automatic punching, punching, u-shaped cylinder thick pipe punching; Other conventional equipment is mainly used in stainless steel balcony guardrail, stair armrest zinc steel guardrail and aluminum fence fence, wrought iron fence, door stainless steel products, aluminum products, pipe products, supermarket shelves, punching, punching shoe rack, etc. Can be blunt shapes aperture, square hole, round hole, diamond, straight hole, pipe arc mouth, mouth oblique arc, unequal Angle of arc and other metal processing equipment
