東莞賽錦公司供應9成新日本MITUTOYO三豐接觸式三坐標測量機BRT－A504

數量：一臺   銷售熱線  13603093504楊力印先生

二手三豐三坐標/二手三豐三次元自動機圖BEYONG-A504

到貨二手三豐自動機三次元BEYONG-A504

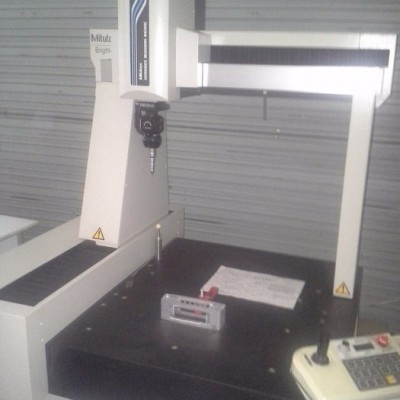

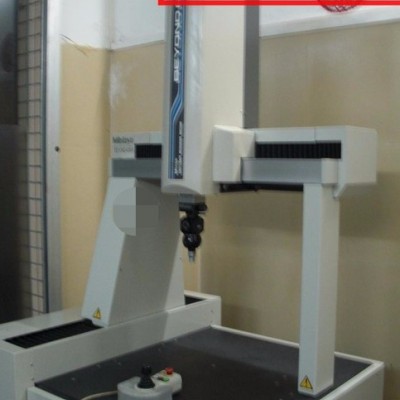

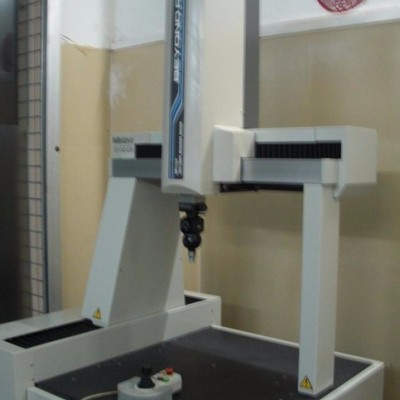

Mitutoyo Coordinate Measuring Machine（Made in Japan）
三豐三坐標測量機
Model型號：BEYONG-A504(手動機型)        （三豐二手三次元機器）
1.Specifications技術規格:
- Measuring Range測量范圍                         : 500(X)×400(Y)×400(Z)mm
- Measuring Accuracy測量精度(20°C)         : (3.5+4L/1000)μm  (L = measuring length測量長度mm)
- Digital counter測量顯示                            : X, Y, Z，3 axis三軸
- Digital counter resolution分辨率                 : 0.0001mm/0.00005mm公英制可轉換
- Moving method移動方式                           : Manual moving手動(粗調,微調)
                                       氣浮軸承，0.4Mpa壓縮空氣
- Table top dimentions工作臺尺寸                 :764×875mm
- Max. workpiece height被測工件高度   : 400mm
- Max. workpiece weight 工作臺載重量 : 180Kg
- weight (machine)主機重量                          : 450Kg


2.Standard Accessories標準附件:
         - Main unit主機                                              1 set
- Microstage工作臺                                         1 set
         - Probing   測頭                                            1 set (RENISHAW  TP1S原裝測頭)
     -Standard ball 標準球                 1 set
         - Measuring pin  測針                 3 set（根據需要測量產品配送）
     - Software        軟件                 1 set （mitutoyo mcosmos 2.4 中文版為版本含影像）
         - User’s manual操作手冊(中文)                       1 copy
     -CF20調心顯微鏡                         1 set  (mitutoyo 日本三豐原裝全新)
