| 數控機床分類 | 其他數控機床 |
|---|---|
| 主電機功率 | 16（kw） |
| 運動方式 | 121 |
| 加工尺寸范圍 | 300*1200mm（mm） |
| 主軸轉速范圍 | 0-24000（rpm） |
| 刀具數量 | 4 |
| 控制方式 | 開環控制 |
| 控制系統 | 新代 |
| 布局形式 | 立式 |
| 動力類型 | 機械傳動 |
| 用途 | 雕刻 |
| 適用行業 | 通用 |
| 售后服務 | 保修一年 |
| 品牌 | 鼎協 |
| 型號 | DX25S |
廠家直銷，一年保修
可按要求加工定制/可貼牌加工
大量現貨，庫存充足
全場包郵、免費送貨上門
………………………………………………………………………………………………………………………………………………………………………………………………………………

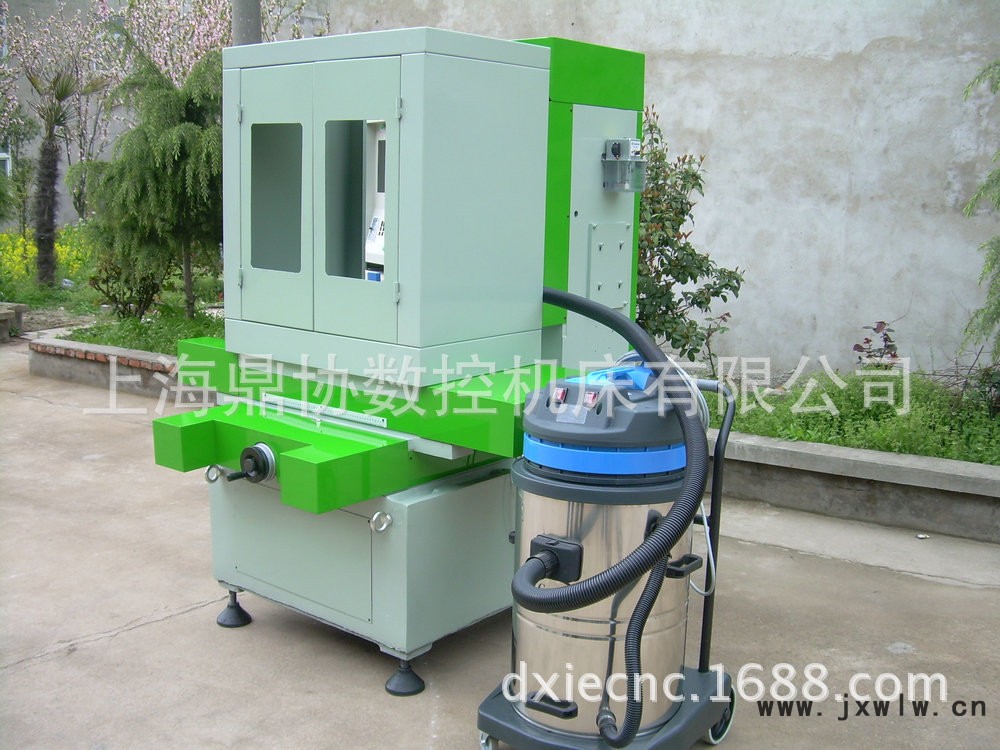

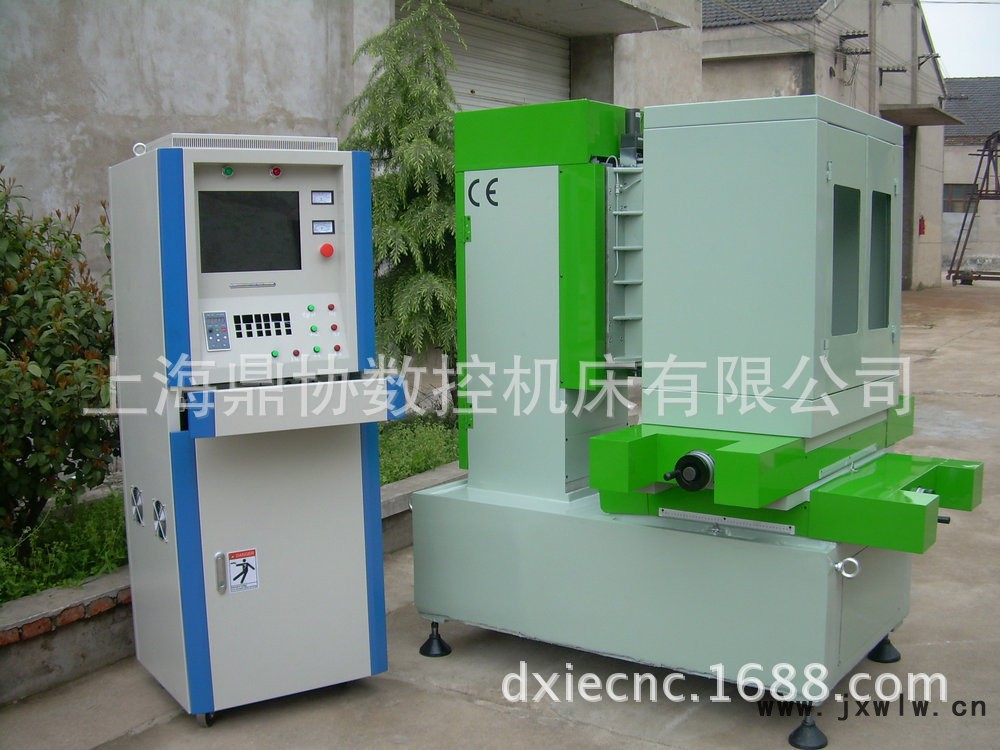

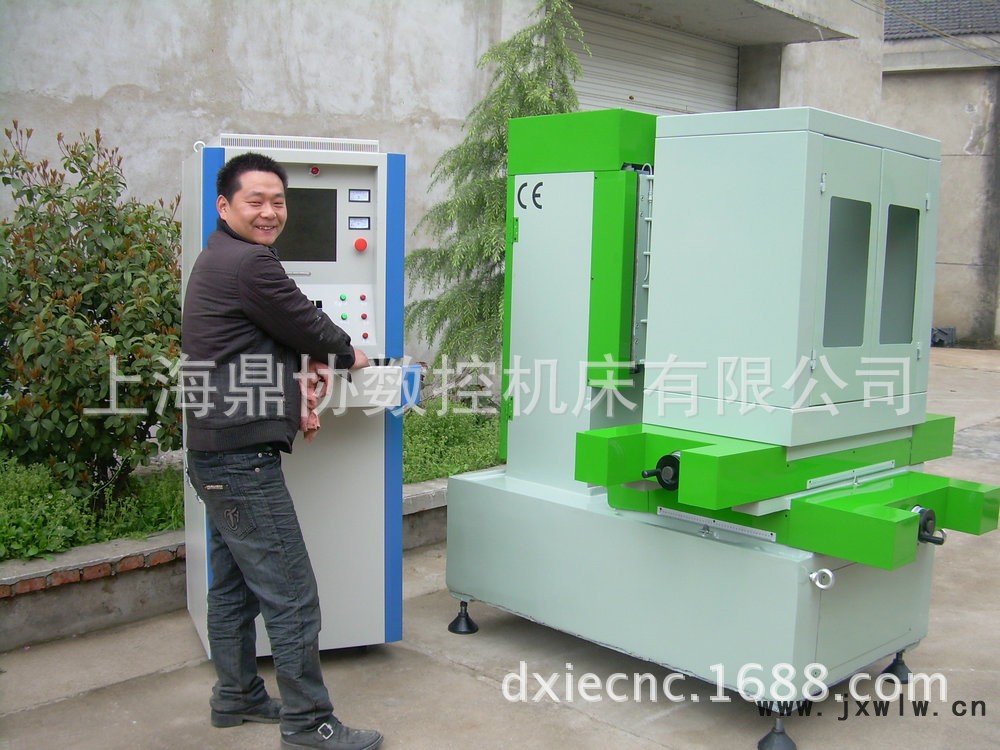

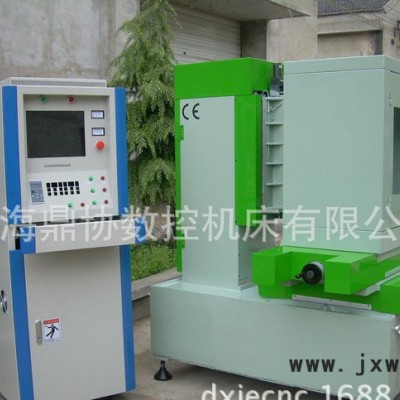

數控金剛砂線切割機床
(cnc diamondline cutting machine)
☆特點：
1.專門用于不導電且超硬材料的成型切削；
2.整體鑄件經高溫去應力處理，有效保證機器的剛性;
3.金剛砂線切削，減少材料損耗；
4.國內首創弓架加高設計，最高切削厚度400毫米；
5. HL數控系統，集編程、控制功能一體，操作簡便，滿足各種不規則異形切削要求。
☆應用材料:
石墨、環氧板、大理石、玉石、光學玻璃、陶瓷、鐵氧體、半導體材料、碳化硅、耐火磚等。
☆Features:
1. Specialized for cutting materials which is nonconductive and hard;
2. United casting structure with stress removal treatment to ensure the rigidity;
3. Cutting by diamond line, minimize the wear of material;
4. Heightened bow rack design, the max. cutting height reach up to 400mm;
5. Controlled by HL CNC system which integrated functions of control and programing, has feature of easy operation, meet different demands for irregular shapes.
☆A(yù)pplication material:
Graphite, epoxy boards, marble, jade, optical glass, ceramics, ferrite, the semiconductor material, silicon carbide and refractory bricks for mold making such as graphite electrodes, and so on
☆技術參數:
No | 項目 | 參數(parameter) | DX25S | DX40S |
1 | 工作行程 (travel size) | X軸(X axis) | 250mm | 400mm |
Y軸(Y axis) | 320mm | 500mm | ||
2 | 工作臺尺寸 (worktable size) | X*Y | 300mmx560mm | 400x680mm |
3 | Z軸進料高度 (feed height for Z) | 250mm或400mm可選 250mmor 400mm can be optional | ||
3 | 精度(accuracy) | 工作精度(working accuracy) | 0.03mm | |
重復定位精度 (repositioning accuracy) | 0.01mm | |||
切割光潔度(cutting roughness) | ＜0.4um | |||
4 | 結構(structure) | X, Y軸 (X,Y axis) | 高精度線性導軌及滾珠絲桿 (linear guiderail and ball screw with high precision) | |
Z軸(Z axis) | 凸輪裝置及高精度線性導軌 cam system and high precision linear guiderail | |||
5 | 速度 | 金剛砂線上下走線速度 (up and down speed of diamondline) | 0-320次/分（可調） 0-320t/min(can be adjustable) | |
金鋼砂線旋轉速度 (rotary speed of diamondline) | 4060rpm | |||
加工速度(cutting speed) | 60-200mm2/min | |||
6 | 其他輔助件 (other apparatus) | 冷卻方式(cooling type) | 水冷卻(cooling by water) | |
潤滑(lubricant) | 手動潤滑系統(manual lubricant system) | |||
金剛砂線規格(diamondline type) | ￠1.0mm | |||
7 | 驅動模式 (working mode) |
| Step-by-step motor and driver | |
8 | 工作電壓 (working voltage) |
| AC380V/50HZ | |
9 | 文件格式 (file format) |
| G、3B代碼 (G or 3B code) | |
10 | 控制系統 (Control system) |
| HL control system | |
11 | 外形尺寸 (outer size) |
| 1600*1180*2100mm | 2000*1380*2100mm |
12 | 重量 |
| 1000kg | 1800kg |
